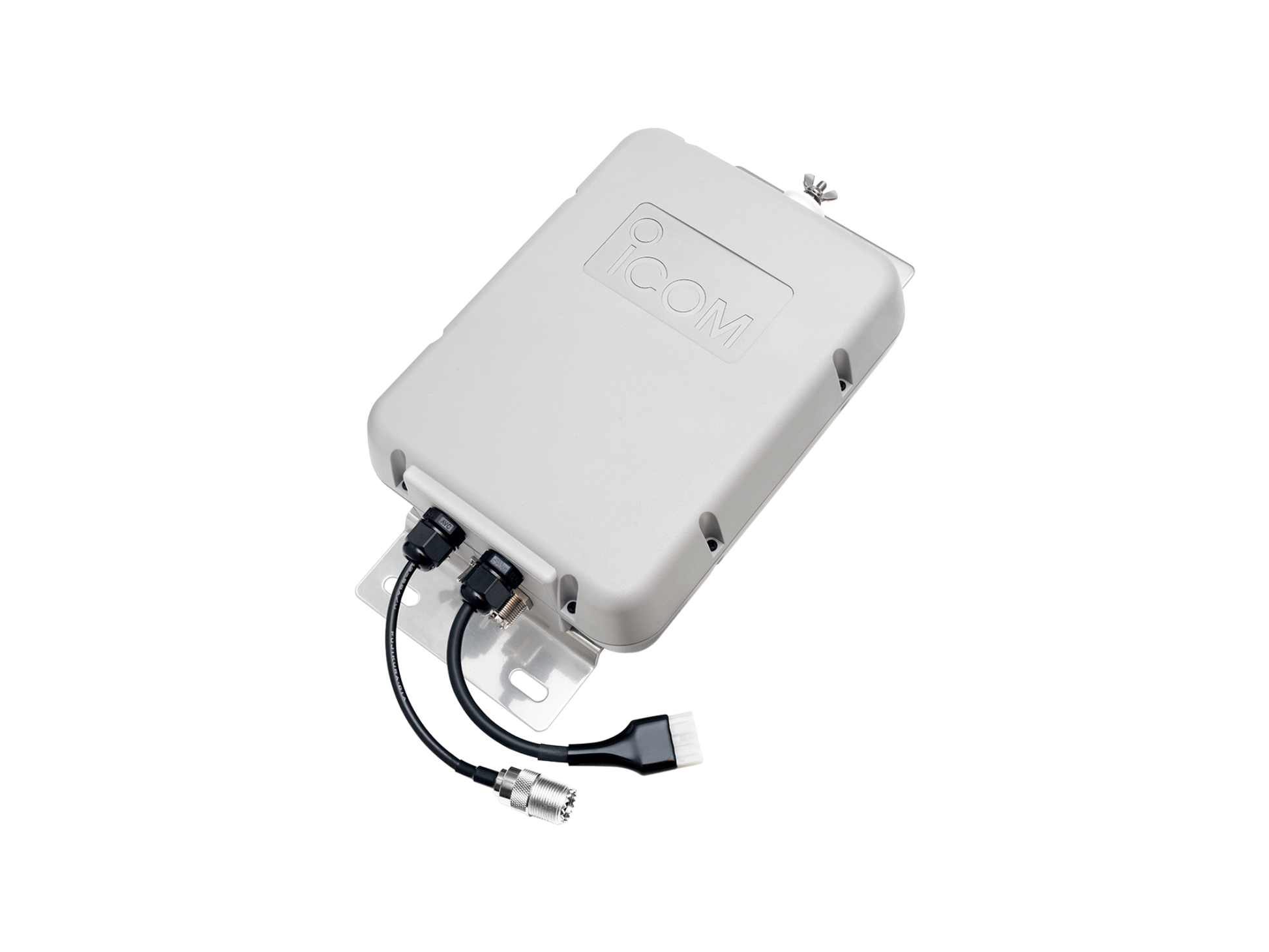

ICOM AH-6 HF/50Mhz Antenna Tuner
ICOM AH-6 HF/50Mhz Antenna Tuner
AH-6 HF/50Mhz Antenna Tuner
Key Features:
- Wide Frequency Coverage
- SO-239 Antenna Connector for 50 Ω antennas
- Compact and Lightweight Design ideal for portable operation
- High-Speed Automatic Tuning
- Reduced Interference During Tuning
- IP54-Rated Rugged Construction for reliable outdoor installation
The AH-6 is compatible with a range of Icom amateur radios, including the IC-7100, IC-7300, IC-7300MK2, and IC-7610. It is supplied complete with a 10-metre control cable and mounting hardware for easy installation.
|
Frequency coverage |
Wire antenna | 1.8 MHz ~ 54 MHz (with a 30 m, 98.4 ft or longer) 3.5 MHz ~ 54 MHz (with a 7 m, 23 ft or longer) |
|---|---|---|
| 50 Ω antenna | 1.8 ~ 54 MHz (16.7 ~ 150 Ω) | |
| Maximum input power | 120 W | |
| Tuning power required | 5 ~ 15 W (10 W rated) | |
| Input impedance | 50 Ω | |
| Power supply requirement | 13.8 V DC±15% (supplied from transceiver) | |
| Current drain | 0.6 A or less | |
| Tuning accuracy | VSWR 2.0 : 1 or less (except for multiples of ½λ) |
|
| Number of memory channel | 200 ch | |
| Tuning time | Average 2 to 3 seconds (maximum 15 seconds) | |
| Operating temperature range | –10°C ~ +60°C; +14°F ~ +140°F | |
| Weight | 1.25 kg; 2.75 lb (approximately) | |
| Dimensions (W×H×D, projections not included) | 172 × 230 × 71 mm; 6.8 × 9.1 × 2.8 in | |
Regular price
$799.00 AUD
Regular price
Sale price
$799.00 AUD
Unit price
/
per
Tax included.
