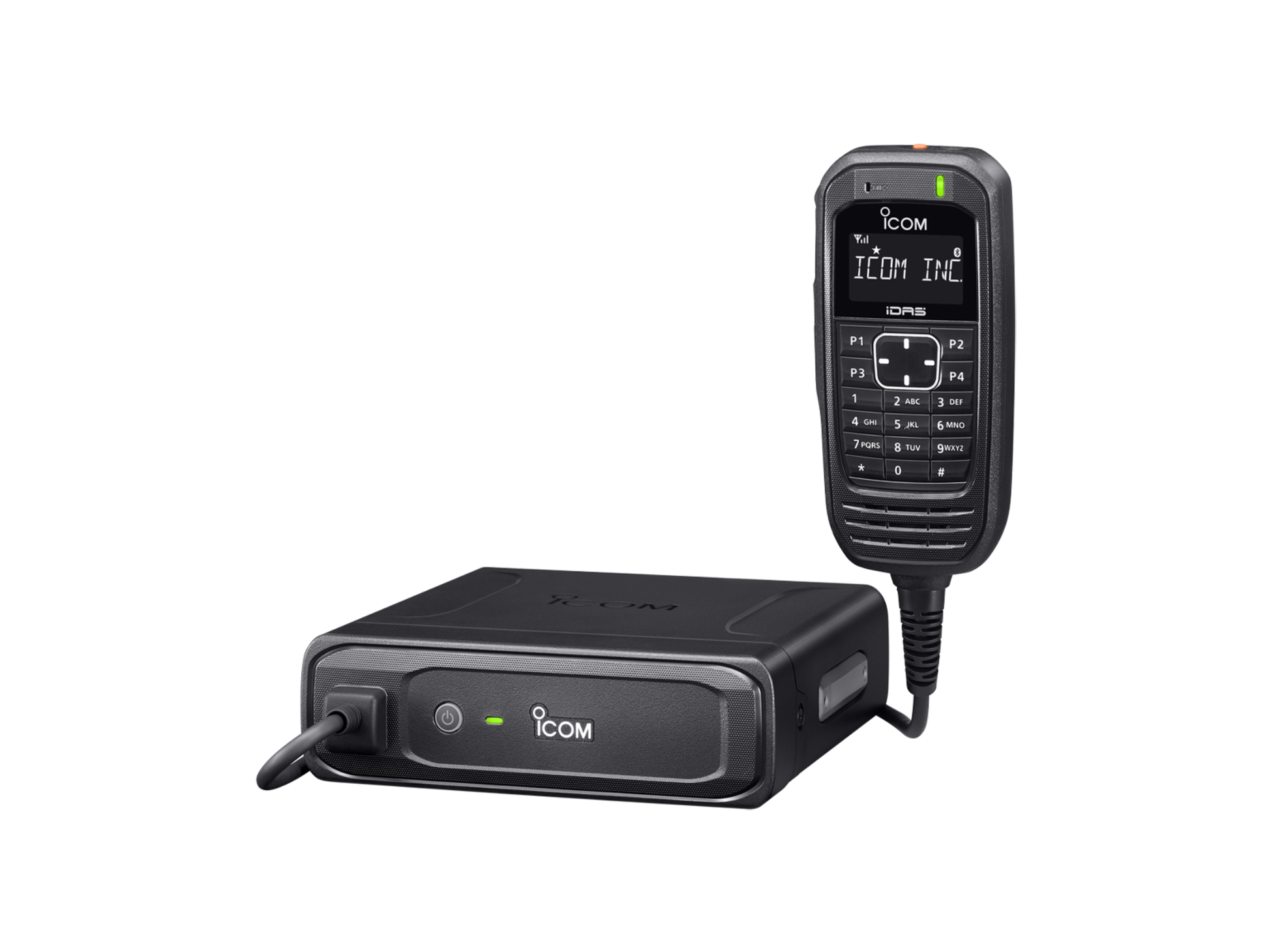

ICOM IC-F6330D UHF or IC-F5330D VHF

The IC-F5330D/F6330D series offers a flexible and unique installation solution that allows the main unit (RF unit) and remote‑controller (PoE PD, Power over Ethernet Powered Device) to be connected using an Ethernet cable, and can be extended up to 100 m, 328 ft with an inexpensive Cat 5e LAN cable. The remote-controller uses a Commandmic™ with excellent operability and a high contrast black LCD.

• 136–174, 400–520 MHz versions
• 128 Channels / 8 Zones
• Two-piece configuration – Commandmic™ + black box main unit
• Commandmic™ is powered from the main unit through an Ethernet cable*
  * Extendable up to 100m, 328 ft. (Cat 5e LAN cable user supplied).
• High contrast, wide viewing angle, black background display on the Commandmic™
• 1700 mW (typical) audio output from the Commandmic™
• MIL-STD-810 G shock, vibration, temperature and more
• IPX4 water splash resistance for the Commandmic™
• DTMF autodial memories capability

• NXDN™ conventional
• NXDN™ Type-D single-site trunking
• NXDN™ simulcast
• NXDN™ multi-site conventional over IP network
• Analogue mode

• PTT ID and ANI
• Over-the-Air Alias (OAA) displays the caller’s name without programming
• Individual, Group and All call
• Late entry for Group call
• Status call and Polling call
• Short data messages
• Call alert
• Radio check (RX only)

• CTCSS and DTCS tone
• 2-Tone and 5-Tone
• MDC functions; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
• BIIS PTT ID transmission

• Digital voice scrambler
• Emergency call and Lone worker
• Remote monitor (RX)
• Radio Kill, Stun and Revive (RX)

• Priority scan monitors one or two priority channels while scanning non-priority channels
• Voting scan automatically selects the optimal repeater site
