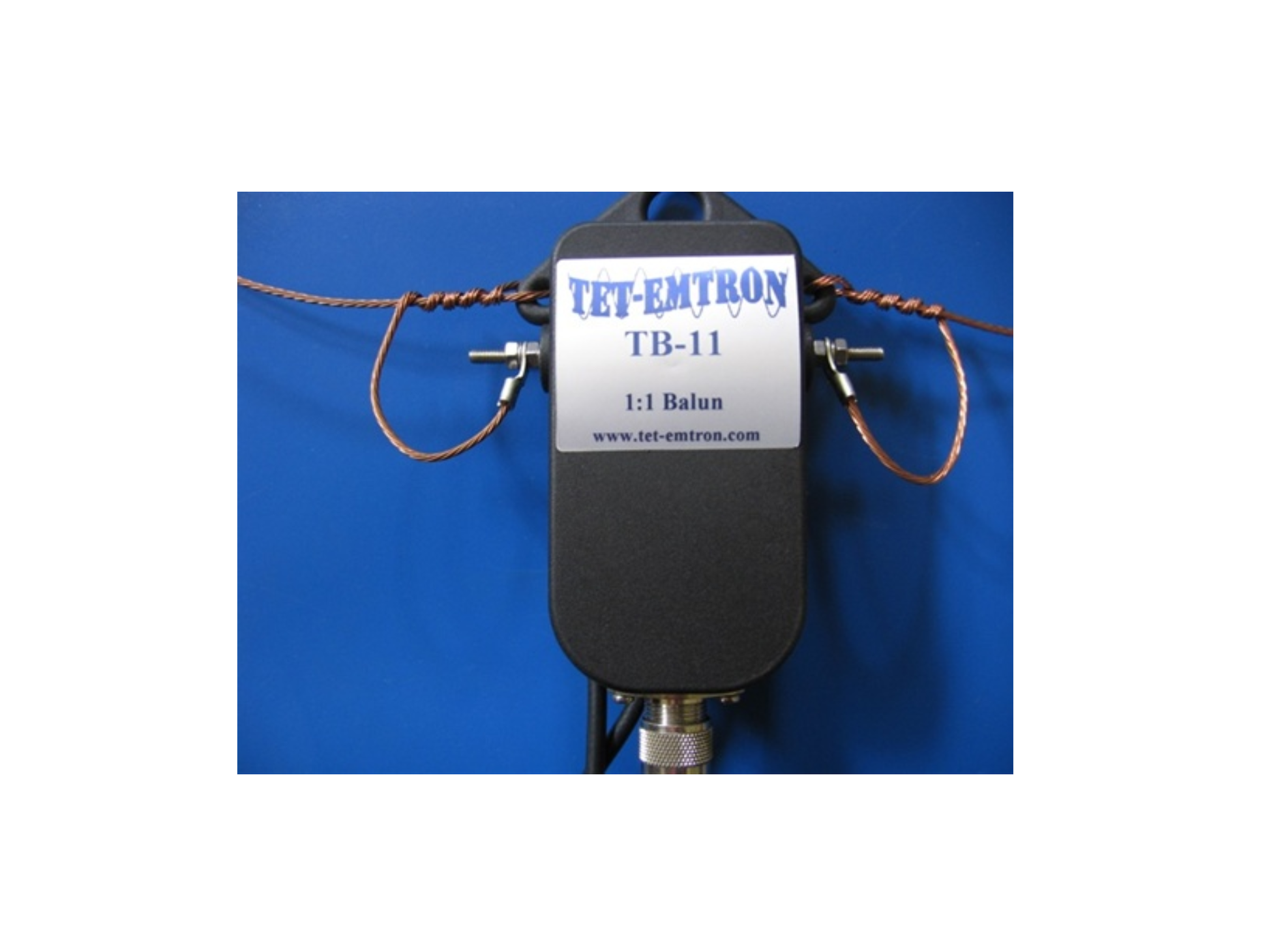

TET EMTRON TB-11 1:1 BALUN

TET EMTRON TB-11 1:1 BALUN

Description

The TB-11 is a 1:1 ratio balun designed to be either mounted on a
vertical like the TEV-4, or hanging in the middle of a wire
dipole.

It is broad banded to work from 160 through to 10 metres, and retains a low VSWR.

The box is made of fiberglass reinforced nylon that is UV stable, and with the stainless hardware, it is designed for long life.
It
also has a cable support on the back for RG58, to take the strain off
the connector. If RG213 is used, a separate hanging support can be
purchased.

It can also be used with the bracket kit Balbrack Kit to mount to the TEV series of verticals.

SPECIFICATIONS
FREQUENCY: 1.8-30 MHz

RATIO: 1:1

POWER RATING: 200 Watts continuous, 500 Watts peak SSB

CONNECTOR: SO239 (UHF Female)

(wire not included)
