TET EMTRON TB-41 4:1 BALUN

TET EMTRON TB-41 4:1 BALUN

Description

Description

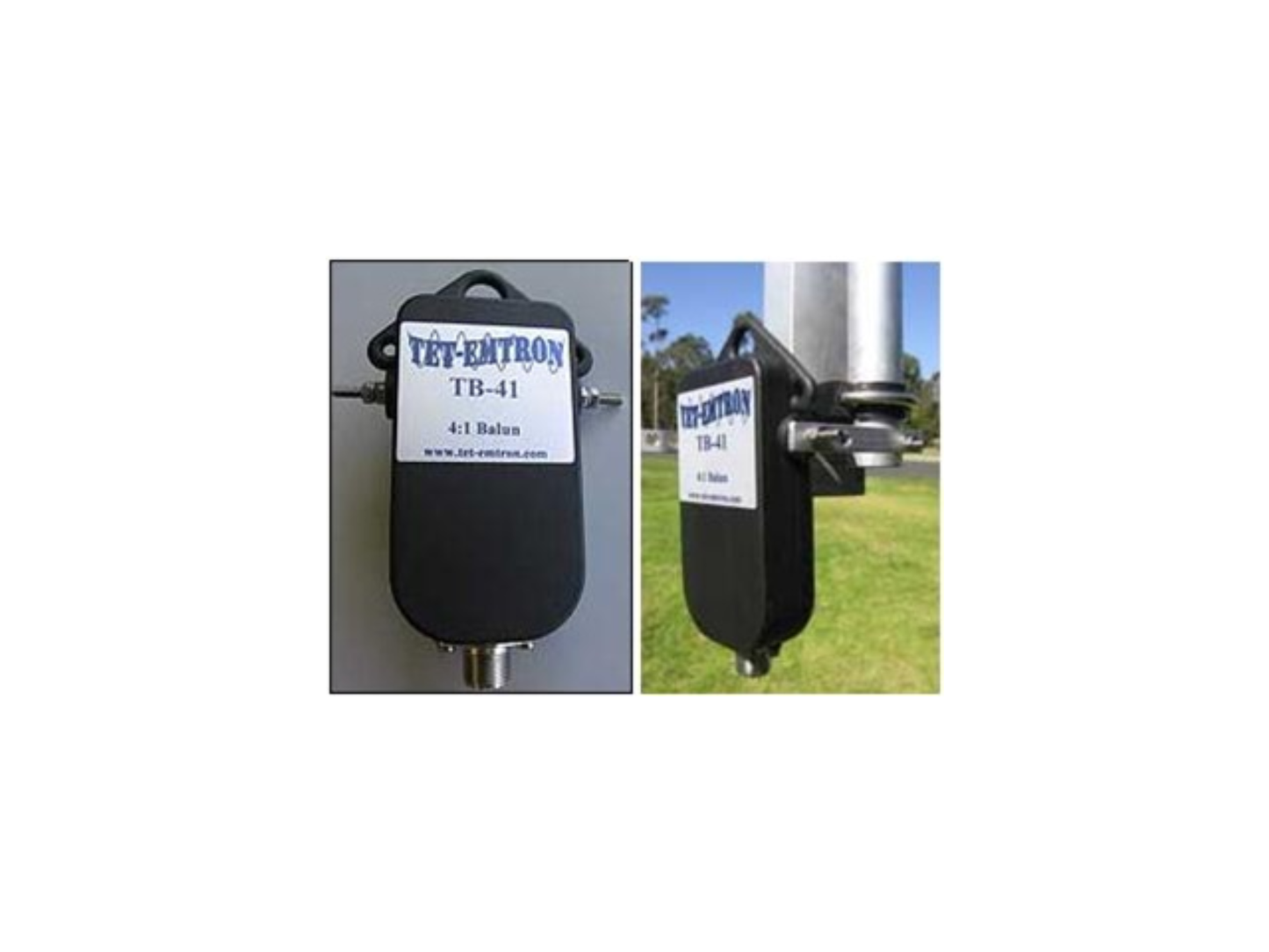

The TB-41 is a 4:1 ratio balun designed to be either mounted on a vertical like the TEV-1, or hanging in the middle of an off centre fed dipole.

It is broad banded to work from 80 through to 10 metres, and retains a low VSWR.

The box is made of fiberglass reinforced nylon that is UV stable, and with the stainless hardware, it is designed for long life.
It also has a cable support on the back for RG58, to take the strain off the connector. If RG213 is used, a separate hanging support can be purchased.

It can also be used with the bracket kit Balbrack Kit to mount to the TEV-1.

SPECIFICATIONS
FREQUENCY: 3-30 MHz

RATIO: 4:1

POWER RATING: 200 Watts continuous, 500 Watts peak

CONNECTOR: SO239 (UHF Female)
